Safe areas & the capsule menu

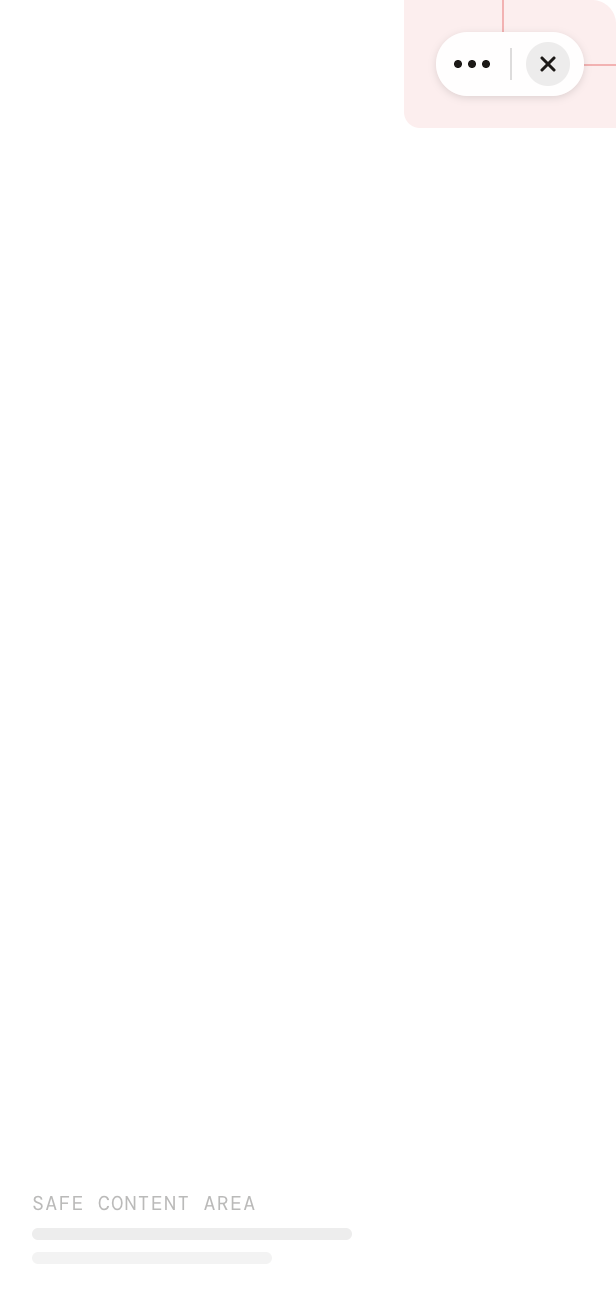

Your miniapp UI runs in a WebView inside the Mentra App, and the host draws its own chrome on top. Two things overlap your content: the device safe-area insets (notch, status bar, rounded corners) and a floating capsule menu the host parks in the top-right. If you lay out edge-to-edge, your header sits under the notch and your top-right button sits under the capsule, where taps go to the host instead of your app. useSafeArea() reads both regions so your layout can pad around them. It imports from @mentra/miniapp/react, the UI layer of the two-layer architecture.

import { useSafeArea } from "@mentra/miniapp/react";

function App() {
  const { insets } = useSafeArea();

  return (
    <div
      style={{
        paddingTop: insets.top,
        paddingBottom: insets.bottom,
        paddingLeft: insets.left,
        paddingRight: insets.right,
      }}>
      <h1>My Miniapp</h1>
    </div>
  );
}

The host injects these values before your content loads. The hook reads them once at mount. They don’t change at runtime today, so there’s nothing to re-render on.

`useSafeArea()`

Returns an object with two fields.

Field	Type	Description
`insets`	`MiniappSafeAreaInsets`	Pixel insets around the WebView content. Apply as padding on your root element.
`capsuleMenu`	`MiniappCapsuleMenuRect \| null`	Bounding rect of the host’s floating capsule menu. `null` when the host doesn’t render one (e.g. older builds).

insets always has all four sides, defaulting to 0 when the host provides none (for example, a browser preview):

`insets` field	Type	Description
`top`	`number`	Inset from the top edge.
`bottom`	`number`	Inset from the bottom edge.
`left`	`number`	Inset from the left edge.
`right`	`number`	Inset from the right edge.

capsuleMenu is the rect of the floating control in the top-right. Use it to keep interactive elements out from under the menu, since taps there reach the host.

`capsuleMenu` field	Type	Description
`top`	`number`	Distance from the top of the viewport to the menu.
`right`	`number`	Distance from the right of the viewport to the menu.
`bottom`	`number`	Distance from the top to the menu’s bottom edge.
`left`	`number`	Distance from the left to the menu’s left edge.
`width`	`number`	Menu width in CSS pixels.
`height`	`number`	Menu height in CSS pixels.

Coordinates are in CSS pixels. Always handle capsuleMenu === null so your layout still works outside the Mentra App and on hosts that don’t draw a menu.

`useCapsuleHeaderStyle()`

When you want your own header markup but want the capsule alignment done for you, useCapsuleHeaderStyle() returns a CSSProperties object you spread onto your header element. It positions the row vertically centered on the capsule menu and reserves room on the right so your content doesn’t slide under it.

import { useCapsuleHeaderStyle } from "@mentra/miniapp/react";

function Header() {
  const style = useCapsuleHeaderStyle();

  return (
    <header style={style}>
      <h1>Hello</h1>
    </header>
  );
}

It accepts an options object. All four are optional and have fallbacks used when the host doesn’t render a capsule menu.

Option	Type	Default	Description
`leftPadding`	`number`	`20`	Extra left padding beyond the safe area.
`rightGap`	`number`	`16`	Space between the header content and the capsule menu.
`fallbackHeight`	`number`	`32`	Header height when no capsule menu is present.
`fallbackMarginTop`	`number`	`16`	Top margin when no capsule menu is present.

The returned style sets display: flex with justifyContent: "space-between", so a left child and a right child split to opposite ends of the row.

`<MiniappHeader>`

For a stock header, <MiniappHeader> renders the aligned row for you. It has three slots (left, title, right) and respects the safe area and capsule menu the same way. It also accepts every useCapsuleHeaderStyle() option as a prop.

import { MiniappHeader } from "@mentra/miniapp/react";

function App() {
  return (
    <>
      <MiniappHeader
        title="My Miniapp"
        onBack={() => history.back()}
        right={<span>Connected</span>}
      />
      {/* page content */}
    </>
  );
}

Prop	Type	Description
`title`	`ReactNode`	A string renders as a semantic `<h1>`. Pass a node for custom markup.
`left`	`ReactNode`	Left slot, typically a back button or logo. Overrides `onBack` if both are set.
`onBack`	`() => void`	Renders a back chevron in the left slot that calls this handler. Ignored when `left` is set.
`right`	`ReactNode`	Right slot, typically a badge or action buttons. Sits to the left of the capsule.
`className`	`string`	Applied to the header element.
`style`	`CSSProperties`	Inline overrides merged over the computed layout style.
`bottomSpacer`	`boolean`	Adds an 8px spacer below the header so the next content isn’t flush against it. Default `true`.

<MiniappHeader> also forwards leftPadding, rightGap, fallbackHeight, and fallbackMarginTop through to the underlying useCapsuleHeaderStyle(). The component ships only the layout, so use className or style for colors and fonts.
